Observing Large Planetaries

Large evolved planetaries have this special nimbus: very large, extremely faint and at the border of or beyond visibility.

In contrast to other large and faint objects, such as for instance certain dwarf galaxies, PN are line emitters. This considerably increases the chances of visibility with a telescope. Using OIII, UHC, or in certain cases H beta emission line filters, some of these large PN come well within reach of visual observation. Even some of those PN, that are hardly visible on the deep plates of the Palomar Sky survey, are well within reach for visual observation with amateur telescopes.

However, apart of few brighter PN, such as the Dumbbell nebula, Abell 21 or the Helix nebula, most of these large PN require a very dark and transparent sky to be able to discern the often only minimal contrast to the background.



Interaction of the PN with the interstellar medium



In young PN, the central star is usually properly in the middle of its PN shell. This is not necessarily the case with older, evolved PN. If the PN's progenitor star has moved through space prior to becoming a PN, it will move on as well as a PN. At least as long as there is nothing in its way.

Usually, there will be something in its way, namely the interstellar medium (ISM), the density of which may vary over a large range. If the PN moves through denser areas of the ISM, the small central star will hardly take notice of it, as due to its small size he will hardly interact with the ISM. Its large PN shell, however, will interact with the ISM, giving rise to several interrelated phenomena:

1) The movement of the PN shell through the ISM may lead to formation of a shock front in the direction of its movement. Quite distinct shock fronts can be found with HFG 1, PFP 1, Abell 31, or Abell 35, to name a few.

2) Further, the PN may loose behind material of the PN shell on its way trough the ISM, leading to formation of a weak "trail" behind the PN. Such trails are, for instance behind HFG 1 or Sharpless 68 (note that this is being questioned for the latter by David Frew, see below).

3) Due to this differential interaction and slow down of shell and star, the central star will no longer be in the middle of the PN shell, but rather be ahead of it. He is becoming a runway central star.

4) The latter leads to differential excitation of the shell. OIII emission (requiring higher energy of the ionizing radiation than HII emission) will be possible only in the vicinity of the hot central star, i.e. within the so-called OIII-Strömgren zone of the central star. HII emission, on the other hand, can still be emitted from the entire shell. Due to this, OIII and HII images will show different areas of the PN shell, which are displaced relative to each other. In this displacement, the OIII areas will be ahead of the HII areas in the direction of the runaway central star.



Borkowski, Sarazin, Soker (1990) Interaction of planetary nebulae with the interstellar medium. Astrophysical Journal 360:173



Tweedy, Kwitter (1996) An atlas of ancient PN and their interaction with the interstellar medium. ApJS 107:255







Visual observation of the displacement of OIII and HII areas



The displacement resulting from point 4 can be confirmed visually for some of the large PN, as for instance for DeHt 5 or Sharpless 68. The most distinct displacement, however, can be observed for Sharpless 174 (see images to the right).

Sharpless 174 has a size of 10'x15' and belongs hence to the largest PN. For this PN, a large proper motion of the central star relative to its shell had been observed. On its way through the ISM, the PN shell forms a trail of HII emission behind it, which can be well discerned on this image by Don Goldman. The central star is already far away from the center of the HII emission. Due to this apparent lack of a central star, the PN had been formerly classified as a HII region. The area shining in OIII light, however, is still placed concentrically around the hot central star, leading to a pronounced displacement between areas of HII and areas of OIII emission (see animation to the right).

Exactly this situation can be confirmed at the eyepiece. The PN is very faint with only diffuse borders, but reveals a distinct displacement of the glowing spot upon switching from OIII to H beta filter. OIII emission is visible to the NE of the PN, while H beta and hence HII emission is more extended in the SE part of the PN. With a UHC filter, which transmits both OIII and H beta, both parts can be observed simultaneously, leading to a rather round appearance of the shell.

Due to the lack of a bow shock, preceding the motion of the "central star", and for several other reasons, the status of DeHt 5, Sharpless 68, and Sharpless 174 as true PN is being questioned by David Frew. He comes to the conclustion that all three objects represent ISM being ionized by the moving star and are hence Strömgren spheres rather than PN. The trailing HII regions or HII tails result then from the HII recombination time, which is rather long at the given density of the ISM.



Tweedy, Napiwotzki,(1994) The planetary nebula abandoned by its central star. Astronomical Journal 108:978



Sharpless 68 by Dean Salman

note the displacement and the trail



Sharpless 174 by Stephane Zoll

note the displacement



Filter choice for extremely faint PN



Besides try and error, comparison of the respective brightness of the PN on the POSS II blue and red plates can be helpful to judge the visibility of the PN in the visible range. The relative spectral sensitivity of our eye compares roughly to that of the POSS II blue plates, which are most sensitive in the range from 450 to 550 nm, while the red plates are sensitive in the range from 620 to 700 nm (the emulsions used for the POSS I survey, on the other hand, had a quite different spectral sensitivity ranging from 350 to 500 nm and from 620 to 670 nm, respectively).

The comparison between POSS blue and red plates may give you a hint to the degree of excitation of the gas shells of the planetaries. The OIII lines of doubly ionized oxygen are at 501nm and 496nm (with only about a third of the intensity of the 501nm line), while the HII lines of ionized hydrogen are at 656nm for H-alpha and 486nm for H-beta (which carries again only one third of the intensity of the H-alpha line). If a PN is visible primarily on the blue plates, it will likely be an object for the OIII filter. If it is much brighter on the red plates, this may be due to its emission in H-alpha and therefore indicate a considerable line strength in HII. As this implies as well emission in H-beta, a UHC filter that does include the H-beta line as well, might be the filter of choice.

Note that some PN have their strongest emission in NII (655nm and 658nm). In those cases, a "bright" appearance on the red plates does not necessarily imply strong HII emission (in that case H-alpha at 656nm)! As most astro-imaging H-alpha filters (with the exemption of the very narrow 3nm filters) transmit not only H-alpha, but as well both NII lines, even most "H-alpha" images do not distinguish between HII and NII. For these planetaries, the OIII filter may be the filter of choice, even that the planetary appears deeply red on images, or an UHC filter (see here).

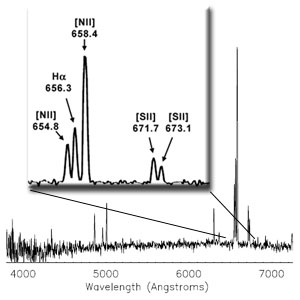

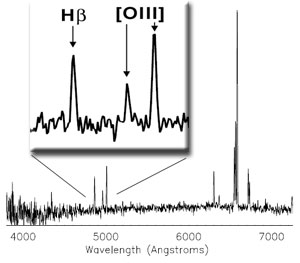

The figures to the right show spectroscopic results by Pierce, Frew, and Parker for one of these large PN that emit mainly in NII, PFP 1. The upper panel shows the position of the slit of the spectrograph at the NE edge of the PN shell (as well as that of the control). The middle panel shows the spectrum for the visible range with the OIII line at 501nm and the H-beta line at und 486nm being of similar strength. The lower panel is a close-up of the red range of the spectrum, where the NII lines clearly dominate over H-alpha.

Figures after  Pierce, Frew, and parker 2004

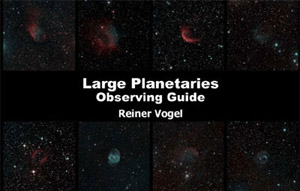

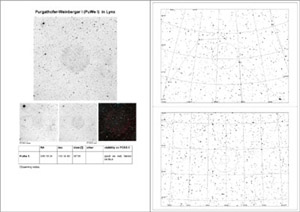

The Large PN Observing Atlas



The observing atlas comprises a non-comprehensive list of 38 large PN (all larger than 5'), which are presented with DSS images, finder charts, and partly with descriptions of visual observations using my 22" Dob.







Download of the Large PN Observing Atlas



(pdf-File 30 MByte, version 03/2013)





Papers

Borkowski, Sarazin, Soker (1990) Interaction of planetary nebulae with the interstellar medium. Astrophysical Journal 360:173



Tweedy, Kwitter (1996) An atlas of ancient PN and their interaction with the interstellar medium. ApJS 107:255



Madsen, Frew, Parker, Reynolds, Haffner (2006) An Optical Emission Line Survey of Large Planetary Nebulae. Proceedings of the International Astronomical Union 2:455



Tweedy, Napiwotzki,(1994) The planetary nebula abandoned by its central star. Astronomical Journal 108:978



David Frew, PhD thesis



Links

Jens Bohle    information about large PN

Stathis Kafalis   observations of several of the largest PN

Uwe Glahn    a large collection of observations and drawings



Imaging of large PN

Stephane Zoll

Don Goldman

Alessandro Maggi

Filipe Alves

Dean Salman

JP Metsävainio

Nicolas Outters

Travis Rector & Heidi Schweiker (NOAO)

Marco Lorenzi

Adam Block

PuWe 1, Filipe Alves, www.manalokos.com

MWP 1, Filipe Alves, www.manalokos.com



HFG 1, NOAO/AURA/NSF



Jacobi 1, Stephane Zoll, www.astrosurf.com/zoll



Picture gallery and observations

The POSS II composites have a uniform size of 30'x30' (except for the largest members). For the faintest PN, there are also inverted renderings (mouseover).



Below each description are links to excellent images.


Sharpless 216 in Perseus

04 45 00   +46 49 00   100'

This is the largest of the known and confirmed PNs at a distance of about 400 - 600 LYs. The NE border is the region with highest contrast to the background. Can be scanned with the telescope and OIII filter.

This PN can in fact become more difficult in larger scopes. I have difficulty seeing it in my 22", but could clearly spot it with my 80 mm refractor (it's a matter of field).

Note that the OIII region of the PN is smaller than HII and NII emitting regions, of which the NII images are the most structured.

(image 90'x90')

paper by Fesen et al., 1981

paper by Tweedy et al., 1995

Stephane Zoll

Dean Salman

narrowband images by Stephane Zoll

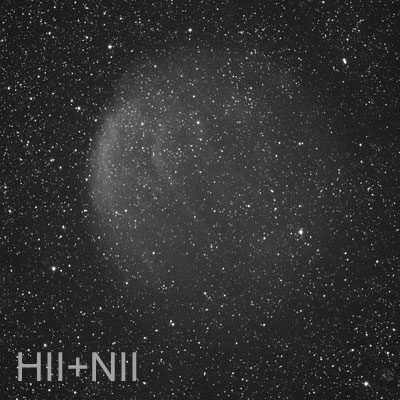

HII + NII (mouseover: OIII)

Outters 4 in Cepheus

21 11 48   +59 59 12   69'x20'

This is a spectacular new discovery be French amateur Nicolas Outters and was baptized Giant Squid Nebula. The nature of this predominantly OIII-emitting object is still unclear and it is  presently considered a "possible planetary nebula". It might as well be an outflow generated by a massive young star, HR8119, as suggested by Acker and co-workers.

It is located apparently within the large HII shell of Sharpless 129. The bright star in the middle is probably not the true "central star", but far in the background. The distance of Ou 4 is estimated to be between 75 and 150 LY. Ou 4 would therefore not only be one of the largest PN (69 arcminutes) but also probably the closest.

(image 120'x120')

With 7mm exit pupil and OIII, the brightest part at the NE side of the southern lobe was suspected, very doubtful.

paper by Acker et al., 2012

Nicolas Outters

The discovery story

Stephane Zoll

Lee Buck

Capella



(SII/HII/OIII, by Nicolas Outters)

mouse-over for OIII

TK 2 (PN G096.8+31.9 around central star RE1738 +665) in Draco

17 38 02   +66 53 48   ~ 60'

Tweedy-Kwitter 1 and 2 are extremely faint PN that were found during a search around potential central stars. The distance of TK2 is about 600 Lys. TK2 is possibly a Strömgren sphere and not a PN.

Not observed, not visible on DSS, mainly NII and hence likely out of reach for visual observation (size 60')

(image 90'x90')

paper by Tweedy and Kwitter, 1994



TK 1 (PN G191.4+33.0 around central star Ton 320) in Cancer

08 27 06   +31 30 09   ~ 30'

Tweedy-Kwitter 1 and 2 are extremely faint PN that were found during a search around potential central stars. The distance of TK1 is about 2000 Lys.

Not observed, not visible on DSS, mainly NII and hence likely out of reach for visual observation  (size  30')

(image 60'x60')

paper by Tweedy and Kwitter, 1994

Alessandro Maggi



Weinberger-Dengel 1 (WeDe 1) or Weinberger-Dengel-Hartl-Sabbadin 1 (WDHS 1) in Orion

05 59 24   +10 41 40   22'x17'

Suspected with OIII as a round filled disk with defined borders towards N and W, more diffuse towards S. Unsafe observation.

Red emission is mostly NII, which is about 4x stronger than HII (Frew 2013). The distance of this PN is about 3000 Lys.

(image 40'x40')

paper by Weinberger et al., 1983

Ernst von Voigt

Stephane Zoll



Purgathofer-Weinberger 1 (PuWe 1) in Lynx

06 19 34   +55 36 42   20'

PuWe 1 (distance approximately 500-1300 LYs) appears under excellent conditions, minimal magnification, 7 mm exit pupil and OIII filter as an extremely faint disk with relatively well defined borders from SE to W (two prominent asterisms directly at the border). PN appears not ring or bubble shaped but as a full disk, that becomes dimmer toward NE.

paper by Purgathofer and Weinberger, 1980

Filipe Alves

Don Goldman

Stephane Zoll

Manuel Jimenez

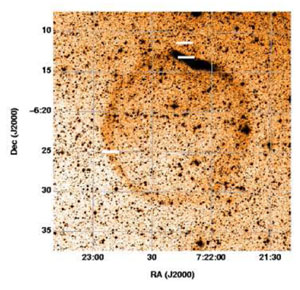

Pierce-Frew-Parker 1 (PFP 1) in Monoceros

07 22 18   -06 21 46   19'x18'

I had tried the "bright" filament at the N edge, which looks promising on broadband "H alpha" frames and which is due to interaction with the ISM. Most of the emission in the red spectral range is, however, due to NII and not HII. The H beta flux is therefore lower than that in OIII. OIII or UHC filters should therefore be better than a pure H beta filter. During my attempt to observe this segment at the N edge, the filament was at best "suspected".

paper by Pierce et al., 2004

Ernst von Voigt

Capella

Marco Lorenzi



Helix-Nebel (NGC 7293)

22 29 39   -20 50 14   18'

The Helix Nebula (distance 630 -1000 LYs) is shown here primarily to reveal the enormous differences in surface brightness to the other large PN. Most of those other large PN have a brightness comparable to the faint outer halo of the Helix rather than the PN itself.

These outer halo shells are extremely faint and emit light predominantly in the NII lines (which makes visual detection even more difficult). I have tried to observed these outer halo shells several time, also under excellent alpine skies, but without definitely positive results.

Halo observations by Johannes Brachtendorf

Don Goldman



Abell 31 in Cancer

08 54 13   +08 53 58   17'x16'

This is the largest Abell PN with a size of 17'x16' (of which, however, only the central part is visible) ! The distance of this PN is about 1400 Lys.

Using OIII filter, Abell 31 is diffuse with no distinct boundaries. Internal structure is suspected but difficult to pin down.

paper by Abell, 1966

Don Goldman

Capella

Adam Block



Ishida-Weinberger 2 (IsWe 2) in Cepheus

22 13 22   +65 53 55   16'x14'

With 7mm exit pupil and H beta visible as a large, extremely faint glow. N and E side round, SW side not defined.

The distance of this PN is about 2000 Lys.

paper by Ishida and Weinberger, 1987

Alessandro Maggi



Abell 35 in Hydra

12 53 41   -22 51 42   16'x11'

This is the second largest Abell PN with 16'x11', of which again only the central part is visible. Its distance is about 700 Lys. Abell 35 is possibly a Strömgren sphere and not a true PN (Frew, thesis).

With OIII Filter, this PN is immediately visible as a diffuse patch around a group of three stars. The band structure in the S part was suspected. Distance of this PN is about 500 LYs.

paper by Abell, 1966

Capella



Heckathorn-Fesen-Gull 1 (HFG 1) in Cassiopeia

03 03 48   +64 53 28   15'

With OIII filter, this PN appears as an irregular diffuse glow.

paper by Fesen, Gull and Heckathorn, 1982

Stephane Zoll (note the trail of the PN in the enhanced image)

Don Goldman

NOAO

Ken Crawford



Abell 74 in Vulpecula

21 16 52   +24 08 51   15'x13'

With 7mm exit pupil and UHC, the PN was visible as a large and extremely faint glow. Some parts of the edge were well defined.

Distance of this PN is about 3000 Lys.

paper by Abell, 1966

Capella

Don Goldman

NOAO



Dumbell Nebula M27

19 59 36   +22 43 00   8'x6' (15'x12' halo)

Belongs to the club only because of its outer halo, which tremendously increases the overall size. The image is already quite burnt out, so this is many steps up from the other members. The outer halo, on the other hand, is again in the same ball park as the other large PN. Halo best with OIII filter at the sides with the "ears".

extreme halo image by Filipe Alves

JP Metsavainio



Abell 7 in Lepus

05 03 08   -15 36 13   15'x11'

Appears as an extremely faint, large and diffuse patch N of a prominent asterism. OIII filter.

The distance of Abell 7 is about 1200 Ly.

paper by Abell, 1966

Ernst von Voigt

Jim Shuder

Don Goldman



Sharpless 174 in Cepheus

23 46 49   +80 56 20   15'x10'

Observed several times with OIII, H beta and UHC filter, revealing different parts of the PN, as evident from a slight shift upon OIII/H beta filter change. PN is diffuse with no clear boundaries. OIII emission is in the NW part. H beta emission is larger and in the SE part. With UHC, both parts are visible and the PN appears round.

Sharpless 174 is possibly a Strömgren sphere and not a true PN (Frew, thesis).

paper by Tweedy and Napiwotzki, 1994

Don Goldman

Dean Salman

Stephane Zoll



Ishida-Weinberger 1 (IsWe 1) in Perseus

18 25 11   +00 51 17   14'

Unsuccessful observation. According to Madsen et al., this PN has equal intensities in OIII and H-beta.

Paper by Ishida and Weinberger, 1987

Alessandro Maggi

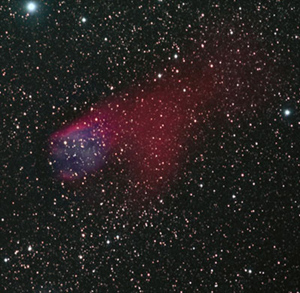

Sharpless 68 in Serpens

18 25 11   +00 51 17   13'

Relatively bright PN with run-away CS. Appears as a faint patch with even surface brightness and diffuse boundaries. OIII filter. The faint emission N of the main PN could not be observed (see Dean Salman's image at the top of this page).

According to Frew (thesis), Sharpless 68 consists of ionized ISM and is not a true PN.

paper by Fesen, Gull and Heckathorn, 1982

Dean Salman

Jim Shuder



Sharpless 176 in Cassiopeia

00 31 53   +57 22 33   13'x11'

Several unsuccessful observations.

NII is about 2.3-fold stronger than H-alpha.

paper by Sabbadin, Minello and Bianchini, 1977

Alessandro Maggi

Stephane Zoll



Ellis-Grayson-Bond 6 (EGB 6) in Leo

09 53 00   +13 44 50   13'x11'

With 7mm exit pupil and with OIII filter, the PN could be observed as an extremely faint patch of light. It does not appear ring-shaped, but rather as a faintly glowing disk.

The distance of EGB 6 is about 2000 Lys.

paper by Ellis, Grayson and Bond, 1984

Alessandro Maggi

Don Goldman

Chris Schur

Stephane Zoll



Motch-Werner-Pakull 1 (MWP 1) in Cygnus

21 17 07   +34 12 40   13'x9'

Using OIII filtering, the central southern part is visible as a diffuse, very faint and oval glow. Further OIII-bright patches  at the E and W side can be observed as well, but are somewhat weaker.

Filipe Alves

Don Goldman

Lionel Mulato

Kitt Peak



Abell 21 in Gemini

07 29 03   +13 14 30   12'x9'

Relatively bright PN, responds well to OIII filter and shows its crescent shape and filamentary structure. Upon closer inspection, the PN is filled with fainter OIII emission. Even the NW border is visible as an extremely faint arc along an arc of stars.

The distance of Abell 21 is about 2000 Ly.

paper by Abell, 1966

Don Goldman

JP Metsavainio

Ken Crawford

Heidi Schweikert and Travis Rector

Jacoby 1 in Bootes

15 21 47   +52 22 05   11'

I tried this one several times and suspected under very good conditions part of the shell in the vicinity of the superimposed star over a bit more than 90°. The star was positioned within the shell. There are several faint stars superimposed along this stretch (visible and not visible at the eyepiece), which may be deceptive.

paper by Jacoby and Van de Steene, 1995

Alessandro Maggi

Mischa Schirmer

Stephane Zoll



Sharpless 78 / Capellaro-Turatto-Salvadori-Sabbadin 3 (CTSS 3) in Aquila

19 03 08   +14 06 57   11'x9'

Extremely faint object bordered by two stars. SW section is better defined and roughly rectangular, NE section is larger and more diffuse. Responds best to UHC, but is also visible with OIII and H-beta.

NII is 4-fold stronger than H-alpha, OIII and H-beta have similar strength.

paper by Capellaro et al., 1990

Dean Salman



Hartl-Dengel-Weinberger 3 (HDW 3) or HaWe 4 in Perseus

03 27 15   +45 24 19   9'

With OIII filter and 7mm exit pupil, an extremely faint large brightening was suspected.

For this PN, OIII is stronger than H-alpha.

paper by Hartl and Weinberger, 1987

Jim Shuder

NOAO

Dengel-Hartl 5 (DeHt 5) in Cepheus

22 19 34   +70 56 01   9'

Appears with OIII filter as an extremely faint, diffuse and round glow, that re-appears again and again upon field sweeping. The PN appears not crescent shaped!

DeHt 5 consists possibly of ionized ISM and is not a true PN (Frew, thesis).

paper by Dengel, Hartl and Weinberger, 1980

Filipe Alves

Don Goldman

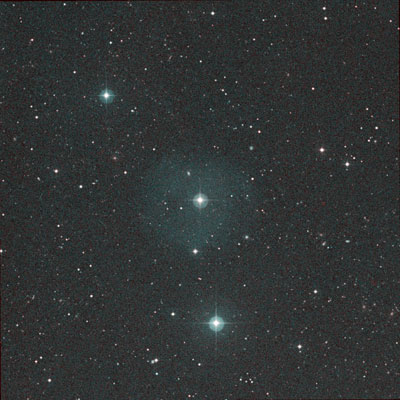

Longmore-Tritton 5 (LoTr 5) in Coma Berenices

12 55 34   +25 53 28   9'

Compared to many of the other, this is a relatively easy target (its very faint instead of extremely faint ) and could be observed several times. Faint disk with relatively well defined edge to the S at the position of the faint star in the middle between CS and the brighter star S. Visible with somewhat lower contrast also with UHC.

paper by Longmore and Tritton, 1980

Capella

Stephane Zoll



Simeis 22 in Cassiopeia

01 30 40   +58 22 00   9'x8'

Nice crescent. Like Abell 21 with a gray filter. Appears with OIII filter somewhat structured with hints of filaments.

NII is for this PN 1.9-fold stronger than H-alpha.

Dean Salman

JP Metsavainio



NGC 1360 in Fornax

03 33 14   -25 52 18   9'x5'

Bright PN with distinct central star. Responds well to OIII filtering. Oval shaped (N-S) with darker SE region.

Ernst von Voigt

Don Goldman

Dumbell Nebula M27

19 59 36   +22 43 00   8'x6' (15'x12' halo)

Truly belongs to the club only because of its outer halo, which tremendously increases the overall size . The image is already quite burnt out, so this is many steps up from the other members. The outer halo, on the other hand, is again in the same ball park as the other large PN. Halo best with OIII filter at the sides with the "ears".

extreme halo image by Filipe Alves

JP Metsavainio



Abell 29 in Pyxis

08 40.2   -20 54 00   8'

Not yet observed.

According to Tweedy and Kwitter, NII is stronger than HII with this PN, with some OIII being detectable. According to Frew 2013, NII is 6x stronger than HII.

paper by Abell, 1966

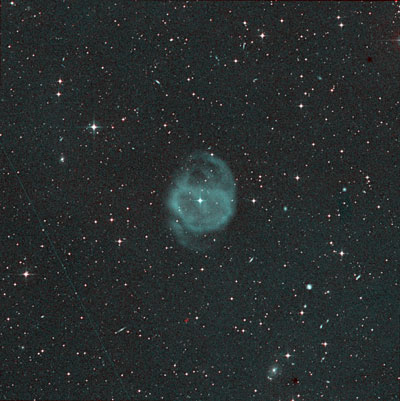

Abell 36 in Virgo

13 40.7   -19 53 00   8'

Another large and bright Abell PN with a diameter of roughly 8', also catalogued as IC 972.

With OIII filter, this PN (distance 800 LYs) is quite distinctly visible around its central star. It appears slightly anular with darker center.

Capella

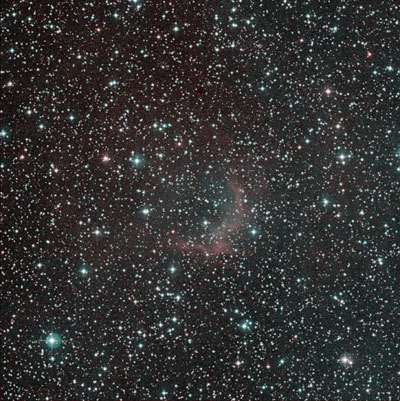

Kohoutek 2-2 in Monoceros

06 52 28   +09 58 17   7'

With OIII filter, this PN does not appear crescent shaped, but rather as an extremely faint disk that pops up intermittently with indirect vision, corresponding to the slight white haze in the composite image.

K 2-2 is stronger in OIII than in H-alpha.



Stephane Zoll



Jones-Emberson 1 (VV 47) in Lynx

07 57 51   +53 25 16   7'x6'

Relatively bright PN that appears as a ring with darker center. Ring has symmetrically two brighter and thicker parts at the NW and SE sides.

JPM Astroanarchy

Adam Block



Hartl-Dengel-Weinberger 2 (HDW 2) / Sharpless 200 in Cassiopeia

03 11 00   +62 48 00   6'

With OIII filter, a very faint glow was observed that extended well beyond the circular asterism in the center, in particular to the North side.

paper by Hartl and Weinberger, 1987

Don Goldman

Dean Salman and Jim Janusz detect a faint outer halo that span over almost 40', making this one of the largest PN. This halo is already mentioned in the discovery paper.



Yerkes-McDonald 16 (YM 16) in Serpens Cauda

18 54 57   +06 02 31   6'

Unsuccessful with all filters (as well as without filter) and 5-7mm exit pupil.

According to Frew (thesis), the ratio NII/H-alpha of this PN is 3.0, implying that most of the red emission is NII and not HII.

paper by Johnson, 1955

Don Goldman

Jim Shuder



Ear Nebula IPHASX J205013.7 + 465518 in Cygnus

20 50 05   +46 52 48   6'

This PN was discovered in 2009 by the IPHAS Survey as IPHASX J205013.7 + 465518. It is hardly visible on the DSS, but relatively bright in OIII, as evident from the fantastic image by Don Goldman.

Best with 100x and 5.2mm exit pupil and with OIII filter. Appears as a large and extremely faint, structured brightening. N edge is round, S edge hardly defined. Central part better defined as NNE/SSW elongated bar.

paper by Sabin et al., 2010

Don Goldman



mouseover: Overlay with Sabin OIII-image



T.A. Rector (University of Alaska Anchorage) and H. Schweiker (WIYN and NOAO/AURA/NSF)

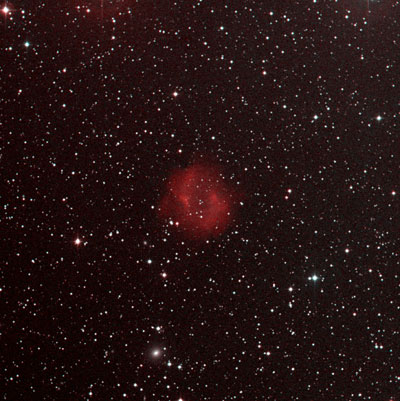

Abell 24 in Canis Minor

07 51 38   +03 00 27   6'



This is again one of these funny red nebula that should respond well to H beta, but don't. According to Madsen et al., the red color is due to NII, which is about 5 times stronger than H-alpha and 7 times stronger than OIII. This makes OIII the strongest visual line, even that it doesn't look like this.

Nevertheless, even with OIII filter, the PN appears only extremely faint, round and featureless.



paper by Abell, 1966

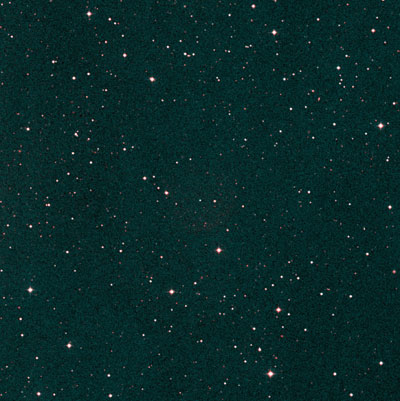

Abell 28 in Ursa Major

08 41 35   +58 14 03   5'

Not yet observed.

According to Madsen et al., this should be an object for the H-beta filter.

paper by Abell, 1966



Ellis-Grayson-Bond 1 (EGB 1) / Hartl-Dengel-Weinberger 1 (HDW 1) in Cassiopeia

01 07 08   +73 33 24   5'

With OIII filter, a diffuse round glow is visible between two groups of stars.

The distance of this PN is about 2000 Lys.

paper by Ellis, Grayson and Bond, 1984

paper by Hartl and Weinberger, 1987



Abell 45 in Scutum

18 30 17   -11 36 54   5'

Not yet observed.

Structure appears to be mainly NII with only little contrast to the surroundings in HII (Tweedy and Kwitter and Frew 2013).

paper by Abell, 1966

Don Goldman

Jones 1 in Pegasus

23 35 53   +30 28 02   5'

Relatively bright PN that responds well to OIII filter. Appears as a ghostly C-shaped PN that is open toward E with brighter rims N and S.

Mischa Schirmer

JP  Metsavainio

Ken Crawford

NOAO



Cat's Eye Nebula (NGC 6543 and IC 4677) in Draco

17 58 33   +66 37 60   5' (halo)

Around its bright central part (17"x23"), the Cat's Eye Nebula has an outer halo of approximately 5' diameter. The by far easiest part of this halo is a rectangular condensation W of the central part towards a neighboring bright star. This structure bears the designation IC 4677 and is listed as a galaxy by some charting programs.

Even under less than optimal conditions, this part of the halo is a relatively easy object.



Don Goldman

Adam Block



Data of the largest PN



status

unclear

distance

(pc)

RA

dec

Ø in '

other names

emission line intensities

Sh 2-216



130

04 45 00

+46 49 00

100

PN G158.6+00.7

OIII > Hα

Outters 4

x

30

21 11 48

+59 59 12

69x20



mostly OIII

TK 2

x

180

17 38 02

+66 53 48

~ 60

RE 1738 +665, PN G096.8+31.9

 NII > Hα

TK 1



570

08 27 06

+31 30 09

~ 30

TON 320, PN G191.4+33.0

 NII > Hα

WDHS 1



850

05 59 24

+10 41 40

22x17

WeDe 1, PN G197.4-06.4

 mostly NII

PuWe 1



370

06 19 34

+55 36 42

20

PN G158.9+17.8

Hα and OIII

PFP 1



540

07 22 18

-06 21 46

19x18

PN G222.1+03.9

mostly NII, Hα and OIII weak

NGC 7293



220

22 29 39

-20 50 14

18

Helix

Hα and OIII

Abell 31



480

08 54 13

+08 53 58

17x16

PN G219.1+31.2

OIII > Hα

IsWe 2



620

22 13 22

+65 53 55

16x14

PN G107.7+07.8

mostly Hα, Hβ ≈ OIII

Abell 35

x

200

12 53 41

-22 51 42

16x11

PN G303.6+40.0

Hα and OIII

HFG 1



600

03 03 48

+64 53 28

15

PN G136.3+05.5

mostly OIII

Abell 74



750

21 16 52

+24 08 51

15x13

PN G072.7-17.1

Hα and OIII

Abell 7



510

05 03 08

-15 36 13

15x11

PN G215.5-30.8

Hα and OIII

Sh 2-174

x

400

23 46 49

+80 56 20

15x10

PN G120.3+18.3

Hα > OIII

Sh 2-68

x

350

18 25 11

+00 51 17

14

PN G030.6+06.2

Hα and OIII

IsWe 1



620

03 49 05

+50 00 15

13

PN G149.7-03.3

 Hb ≈ OIII

Sh 2- 176



780

00 31 53

+57 22 33

13x11

PN G120.2-05.3

mostly NII, Hα weaker

EGB 6



590

09 53 00

+13 44 50

13x11

PN G221.5+46.3

OIII > Hα

MWP 1



500

21 17 07

+34 12 40

13x9

PN G080.3-10.4

OIII > Hα

Abell 21



540

07 29 03

+13 14 30

12x9

Medusa, PN G205.1+14.2

OIII and Hα

Jacoby 1



570

15 21 47

+52 22 05

11

PK 085 +52.1

mostly OIII

CTSS 3



640

19 03 08

+14 06 57

11x9

Sh 2- 78, PN G046.8+03.8

NII > OIII and Hα

HDW 3



800

03 27 15

+45 24 19

9

HW 4, PN G149.4-09.2

OIII>Hα

DeHt 5

x

300

22 19 34

+70 56 01

9

DHW 5, PN G111.0+11.6

Hα>OIII

LoTr 5



500

12 55 34

+25 53 28

9

PN G339.9+88.4

mostly OIII

Simeis 22



830

01 30 40

+58 22 00

9x8

Sh 2-188, PN G128.0-04.1

NII>Hα>OIII

NGC 1360



380

03 33 14

-25 52 18

9x5





M 27



380

19 59 36

+22 43 00

8x6

Dumbell, NGC 6853

Halo 15'x12'  OIII

Abell 29



1390

08 40.2

-20 54 00

8

PN G244.5+12.5

 NII >> Hα

Abell 36



450

13 40.7

-19 53 00

8

PN G318.4+41.4

mostly OIII

Kohoutek 2-2



800

06 52 28

+09 58 17

7

PN G204.1+04.7

OIII and Hα

JnEr 1



1115

07 57 51

+53 25 16

7x6

VV 47, PN G164.8+31.1

OIII and Hα

HDW 2



660

03 11 00

+62 48 00

6

Sh 2-200, PN G138.1+04.1

OIII and Hα

YM 16



1290

18 54 57

+06 02 31

6

Yerkes-McDonald 16, PNG038.7+01.9

NII >> Hα

Ear Nebula



520

20 50 05

+46 52 48

6

IPHASX J205013.7 + 465518

OIII and Hα

Abell 24



830

07 51 38

+03 00 27

6

PN G217.1+14.7

 NII >> OIII and Hα

Abell 28



1220

08 41 35

+58 14 03

5

PN G158.8+37.1



EGB 1



650

01 07 08

+73 33 24

5

HDW 1, PN G124.0+10.7

OIII and Hα

Abell 45



1320

18 30 17

-11 36 54

5

PN G020.2-00.6

 NII > Hα

Jones 1



900

23 35 53

+30 28 02

5

PN G104.2-29.6

mostly OIII

Distance estimates mostly adopted from David Frew, PhD thesis



DSS images copyright notice

The Digitized Sky Survey was produced at the Space Telescope Science Institute under U.S. Government grant NAG W-2166. The images of these surveys are based on photographic data obtained using the Oschin Schmidt Telescope on Palomar Mountain and the UK Schmidt Telescope. The plates were processed into the present compressed digital form with the permission of these institutions.

home
